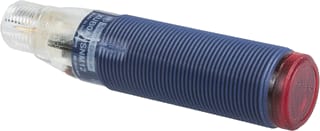

This product is part of the XUB range, an offer of cylindrical photo-electric sensors. Operating in reflex mode, this cylindrical sensor uses a reflector to ensure reliable object detection. This sensor presents adjustable distance sensitivity, NO/NC function and PNP output type. It is a photo-electric cell with a rated supply voltage of 12V to 24VDC and protection against reverse polarity. Our sensor boasts an impressive sensing range, extending up to 7 meters. Equipped with a potentiometer and a visible HMI featuring bright LEDs, our sensors offer user-friendly setup and monitoring, simplifying your conveying operations. This photocell features a miniature and robust housing. The casing and the potentiometer is made of plastic (PBT/PC) and the lens is made of PMMA. Its dimensions are 18mm (Diameter) x 44mm (Length) and it weighs 0.035kg. It can operate in very cold (-30°C) and very hot environments (+55°C).
