TeSensors - Preventa XCS Ronde (industrie) connector Connector Xzcp1141L5 - XZCP1141L5

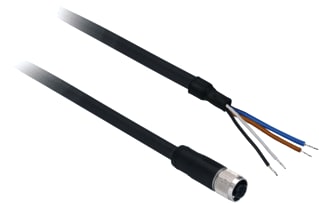

This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 4 wires and has a 4-pin M12 straight female connector with a metal collar. It is designed in polyurethane for severe industrial environments. This cable is used for easy connection of sensors with connectors to terminal blocks or PLC inputs. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1G?. It is dustproof, resistant to water jets (IP65), can be temporarily immersed in water (IP67), and withstands high pressure and steam cleaning (IP69K). This cable has a length of 5m and a diameter of 5.2mm. It is made up of 4 wires, each section of which is 0.34mm2. Its color is black and its weight is 0.19kg.
