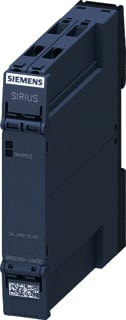

Siemens - Temp.-meetrelais (motorbeveiliging) 3Rn20001Aw30 - 3RN20001AW30

thermistor motor protection relay compact evaluation unit, 17.5 mm enclosure, screw terminal, 1 change-over contact, Us = 24 V-240 V AC/DC, Auto RESET, suitable for bimetallic temperature switches, supply=output voltage, 1 LED (tripped) for protecting motors against overheating by means of direct temperature measurement Direct measurement of the motor winding temperature means that the motor is protected even under abnormal conditions such as heavy starting, braking mode, frequent switching or insufficient cooling, and therefore renders precautionary over-dimensioning of the motor unnecessary. It is not necessary to set device parameters as PTC sensors or bimetallic switches are used. LEDs enable fast error diagnostics. The devices are climate-resistant, safe to touch and can be used worldwide thanks to their wide voltage range and international certifications.
