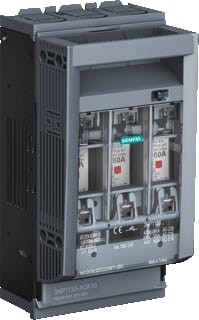

Siemens - Sentron Patroonlastscheider Zeklastsch 3Np1133-1Ca10 - 3NP11331CA10
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Bouwgrootte zekeringsinzetstukken - DIN00/000
Nom. bedrijfsstroom Ie - 160 A
Nulklem - Nee
Uitrusting patroonlastscheider - Met lastscheider
In kast - Nee
Verpakking
1 per stuk(s)
Voorraadartikel: Ja
Artikelnummer TU
2046146
Leverancierscode
3NP11331CA10
EAN
4011209700239
Commercieel bestelnummer
3NP1133-1CA10
HGS code
195781
Douanenummer
85365080
Bouwgrootte zekeringsinzetstukken:
DIN00/000
Nom. bedrijfsstroom Ie:
160 A
Nulklem:
Nee
Uitrusting patroonlastscheider:
Met lastscheider
In kast:
Nee
Aantal polen:
3
Beschermingsgraad (IP):
IP20
Bovenaansluiting:
Ja
Contactonderbreking:
Dubbel
Nom. isolatiespanning Ui:
690 V
Onderaansluiting:
Ja
SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH00, 160 A, for assembly and installation on mounting plate, flat terminal, Cover level 45 mm 3NP fuse switch disconnector up to 630 A with enhanced protection for personnel and plants and user-friendly connection system. The fuse switch disconnectors have an electronic fuse monitoring function that enables optional line monitoring. Flexible switching times of the auxiliary switch are possible. The reach-round and touch protection incorporated as standard in the new SENTRON 3NP1 series prevents users from touching current conducting parts when mounting on a busbar system, even when accessing at therear. 3NP1 fuse switch disconnectors are available in 1-, 3- and 4-pole versions for currents from 125 A to 630 A up to degree of protection IP40. Optimized technology for your safety - only from Siemens.
