Circulair

Siemens - Drukknop frontelement Drukknop 22Mm Rood - 3SU10001HB200AA0

Siemens
KopiërenKopiëren

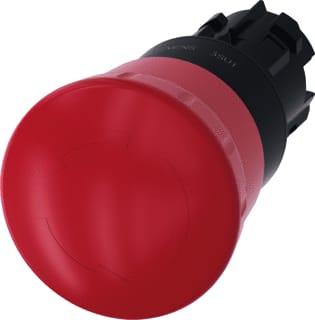

Siemens - Drukknop frontelement Drukknop 22Mm Rood

Bekijk voorraad en prijs na inlog

Belangrijke kenmerken

  • Geschikt voor verlichting - Nee

  • Terugverend - Nee

  • Kleur knop - Rood

  • Bouwvorm lens - Rond

  • Schakelfunctie vergrendelend - Ja

Verpakking

  • 1 per stuk(s)

  • Voorraadartikel: Ja

Artikelnummer TU

9370897

Leverancierscode

3SU10001HB200AA0

EAN

4011209937758

Commercieel bestelnummer

Onbekend

HGS code

195701

Douanenummer

85364900

Geschikt voor verlichting:

Nee

Terugverend:

Nee

Kleur knop:

Rood

Bouwvorm lens:

Rond

Schakelfunctie vergrendelend:

Ja

Beschermingsgraad frontzijde (IP):

IP69K

Met opschrift:

Nee

Houdfunctie:

Ja

Gatdiameter:

22 mm

Vergrendelingswijze:

Drukvergrendeling

Materiaal frontrand:

Overig

Met beschermafdekking:

Nee

Model:

Paddestoelknop

Type knop:

Hoog

Gravering:

Geen

Met frontring:

Nee

Opdruk:

Pijlen

Aantal commandoposities:

1

Breedte opening:

22 mm

Frontbreedte:

40 mm

Frontdiameter:

40 mm

Fronthoogte:

45.3 mm

Hoogte opening:

22 mm

Recycle:

Ja

Siemens AG SIRIUS ACT 3SU1 EMERG. STOP mushroom pushb., 40m...

EMERGENCY STOP mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch in accordance with EN ISO 13850 for controlling safety-related applications, cannot be overruled Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in three modern design lines of rugged genuine metal and high-grade plastic. An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible.
