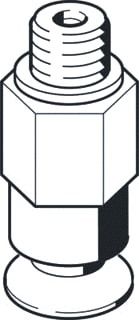

Festo - Vacuum suction cup vas-10-m5-si-b - 1385610
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Suction disc diameter - 10 mm
Shape - Round flat
Shore hardness - 60 +/- 5
Holding force - 3.7 N
Ambient temperature - -40 t/m 200 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6952963
Leverancierscode
1385610
EAN
4052568061968
Commercieel bestelnummer
VAS-10-M5-SI-B
HGS code
188411
Douanenummer
85444290
Suction disc diameter:
10 mm
Shape:
Round flat
Shore hardness:
60 +/- 5
Holding force:
3.7 N
Ambient temperature:
-40 t/m 200 °C
With ball head:
NO
Inlet threaded connection:
External thread metric
Material thread connection plug:
Wrought aluminium alloy
Size of inlet thread connection:
5 mm
Weight:
2 g
Materials note:
Contains PWIS substances conforms to RoHS
Festo vacuum suction cup, suction disc diameter 10mm, with ball head NO, inlet threaded connection external thread metric, size of inlet thread connection 5mm
