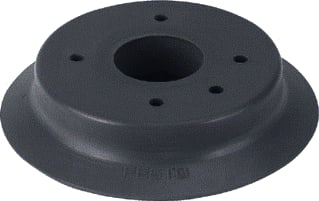

Festo - Vacuum suction cup Esv-80-Sf - 191006
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Suction disc diameter - 80 mm
Shape - Round flat
Shore hardness - 60 +/- 5
Holding force - 309.7 N
Ambient temperature - -10 t/m 200 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6929485
Leverancierscode
191006
EAN
4052568150365
Commercieel bestelnummer
ESV-80-SF
HGS code
188403
Douanenummer
85444290
Suction disc diameter:
80 mm
Shape:
Round flat
Shore hardness:
60 +/- 5
Holding force:
309.7 N
Ambient temperature:
-10 t/m 200 °C
With ball head:
NO
Inlet threaded connection:
External thread metric
Material thread connection plug:
Brass
Size of inlet thread connection:
6 mm
Weight:
33 g
Materials note:
Free of copper and PTFE / Conforms to RoHS
Festo vacuum suction cup, suction disc diameter 80mm, with ball head NO, inlet threaded connection external thread metric, size of inlet thread connection 6mm
