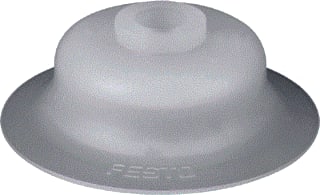

Festo - Vacuum suction cup esv-20-ss - 190981
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Suction disc diameter - 20 mm
Shape - Round flat
Shore hardness - 50 +/- 5
Holding force - 16.3 N
Ambient temperature - -30 t/m 180 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6929310
Leverancierscode
190981
EAN
4052568043100
Commercieel bestelnummer
ESV-20-SS
HGS code
188403
Douanenummer
85444290
Suction disc diameter:
20 mm
Shape:
Round flat
Shore hardness:
50 +/- 5
Holding force:
16.3 N
Ambient temperature:
-30 t/m 180 °C
With ball head:
NO
Inlet threaded connection:
External thread metric
Material thread connection plug:
Brass
Size of inlet thread connection:
6 mm
Weight:
1.6 g
Materials note:
Free of copper and PTFE contains PWIS substances conf t RoHS
Festo vacuum suction cup, suction disc diameter 20mm, with ball head NO, inlet threaded connection external thread metric, size of inlet thread connection 6mm
