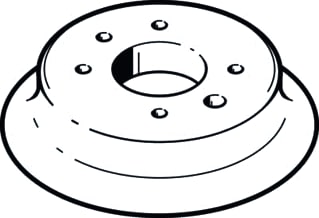

Festo - Vacuum suction cup esv-100-ss - 191009
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Shape - Round flat
Suction disc diameter - 100 mm
Shore hardness - 50 +/- 5
Holding force - 503.6 N
Ambient temperature - -30 t/m 180 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6929506
Leverancierscode
191009
EAN
4052568079000
Commercieel bestelnummer
ESV-100-SS
HGS code
188403
Douanenummer
85444290
Shape:
Round flat
Suction disc diameter:
100 mm
Shore hardness:
50 +/- 5
Holding force:
503.6 N
Ambient temperature:
-30 t/m 180 °C
With ball head:
NO
Inlet threaded connection:
External thread metric
Material thread connection plug:
Brass
Size of inlet thread connection:
6 mm
Weight:
59 g
Materials note:
Free of copper and PTFE contains PWIS substances conf t RoHS
Festo vacuum suction cup, suction disc diameter 100mm, with ball head NO, inlet threaded connection external thread metric, size of inlet thread connection 6mm
