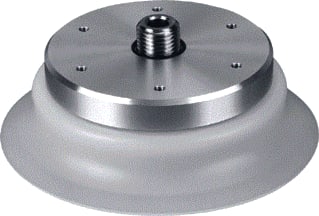

Festo - Vacuum suction cup ess-80-es - 189360
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Suction disc diameter - 80 mm
Shape - Round
Shore hardness - 50 +/- 5
Holding force - 275 N
Ambient temperature - -30 t/m 180 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6928967
Leverancierscode
189360
EAN
4052568078812
Commercieel bestelnummer
ESS-80-ES
HGS code
188403
Douanenummer
85444290
Suction disc diameter:
80 mm
Shape:
Round
Shore hardness:
50 +/- 5
Holding force:
275 N
Ambient temperature:
-30 t/m 180 °C
With ball head:
NO
Inlet threaded connection:
External thread metric
Material thread connection plug:
Steel
Surface protection thread connection plug:
Nickel plated
Size of inlet thread connection:
10 mm
Weight:
141 g
Materials note:
Free of copper and PTFE contains PWIS substances conf t RoHS
Festo vacuum suction cup, shape round, suction disc diameter 80mm, with ball head NO, inlet threaded connection external thread metric, material thread connection plug steel, surface protection thread connectio nickel plated, size of inlet thread connection 10mm
