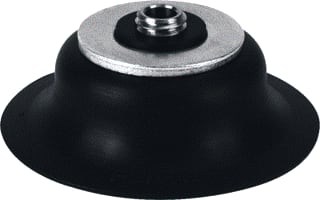

Festo - Vacuum suction cup ess-50-sn - 189309
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Shape - Round flat
Suction disc diameter - 50 mm
Shore hardness - 60 +/- 5
Holding force - 105.8 N
Ambient temperature - -10 t/m 70 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6928603
Leverancierscode
189309
EAN
4052568042226
Commercieel bestelnummer
ESS-50-SN
HGS code
188403
Douanenummer
85444290
Shape:
Round flat
Suction disc diameter:
50 mm
Shore hardness:
60 +/- 5
Holding force:
105.8 N
Ambient temperature:
-10 t/m 70 °C
With ball head:
NO
Inlet threaded connection:
External thread metric
Material thread connection plug:
Brass
Surface protection thread connection plug:
Nickel plated
Size of inlet thread connection:
6 mm
Weight:
22 g
Materials note:
Free of copper and PTFE / Conforms to RoHS
Festo vacuum suction cup, suction disc diameter 50mm, with ball head NO, inlet threaded connection external thread metric, material thread connection plug brass, surface protection thread connectio nickel plated, size of inlet thread connection 6mm
