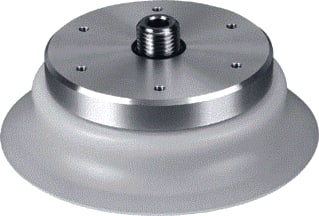

Festo - Vacuum suction cup ess-100-es - 189364
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Shape - Round
Suction disc diameter - 100 mm
Shore hardness - 50 +/- 5
Holding force - 440.8 N
Ambient temperature - -30 t/m 180 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6928995
Leverancierscode
189364
EAN
4052568149956
Commercieel bestelnummer
ESS-100-ES
HGS code
188403
Douanenummer
85444290
Shape:
Round
Suction disc diameter:
100 mm
Shore hardness:
50 +/- 5
Holding force:
440.8 N
Ambient temperature:
-30 t/m 180 °C
With ball head:
NO
Inlet threaded connection:
External thread metric
Material thread connection plug:
Steel
Surface protection thread connection plug:
Nickel plated
Size of inlet thread connection:
10 mm
Weight:
228 g
Materials note:
Free of copper and PTFE contains PWIS substances conf t RoHS
Festo vacuum suction cup, shape round, suction disc diameter 100mm, with ball head NO, inlet threaded connection external thread metric, material thread connection plug steel, surface protection thread connectio nickel plated, size of inlet thread connection 10mm
