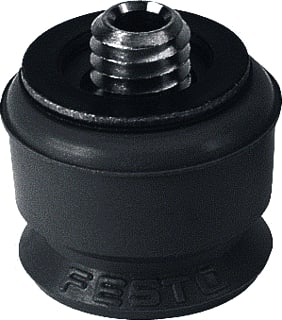

Festo - Vacuum suction cup ess-10-sf - 189287
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Suction disc diameter - 10 mm
Shape - Round flat
Shore hardness - 60 +/- 5
Holding force - 3.9 N
Ambient temperature - -10 t/m 200 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6928428
Leverancierscode
189287
EAN
4052568042042
Commercieel bestelnummer
ESS-10-SF
HGS code
188403
Douanenummer
85444290
Suction disc diameter:
10 mm
Shape:
Round flat
Shore hardness:
60 +/- 5
Holding force:
3.9 N
Ambient temperature:
-10 t/m 200 °C
With ball head:
NO
Inlet threaded connection:
External thread metric
Material thread connection plug:
Brass
Surface protection thread connection plug:
Nickel plated
Size of inlet thread connection:
4 mm
Weight:
1.5 g
Materials note:
Free of copper and PTFE / Conforms to RoHS
Festo vacuum suction cup, suction disc diameter 10mm, with ball head NO, inlet threaded connection external thread metric, material thread connection plug brass, surface protection thread connectio nickel plated, size of inlet thread connection 4mm
