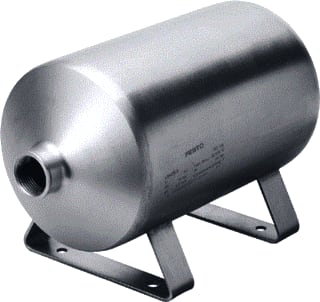

Festo - Pressured air vessel Crvzs-20 - 534845
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Material - Stainless steel
Model - Horizontal
Mounting method - Downward condensate drain
Nominal diameter - G1
With safety valve - NO
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6175774
Leverancierscode
534845
EAN
4052568015848
Commercieel bestelnummer
CRVZS-20
HGS code
188403
Douanenummer
85444290
Material:
Stainless steel
Model:
Horizontal
Mounting method:
Downward condensate drain
Nominal diameter:
G1
With safety valve:
NO
With pressure gauge:
NO
Capacity:
20 l
Max. operating pressure:
-0.95 t/m 16 bar
Weight:
10.208 g
Conforms to standard:
AD 2000 reference sheet
Authorization:
CRN
Certificate issuing department:
CRN0H15669.5C
Operating medium:
Compress air in accord. with ISO8573-1:2010 [-:-:-] Introgen
Corrosion resistance:
3: High
Suitable for foods:
See Supplementary material information
Medium temperature:
-10 t/m 100 °C
Ambient temperature:
-10 t/m 100 °C
Max. tightening torque, connecting thread:
130 Nm
Mounting:
With through hole
Materials note:
Free of copper and PTFE / Conforms to RoHS
