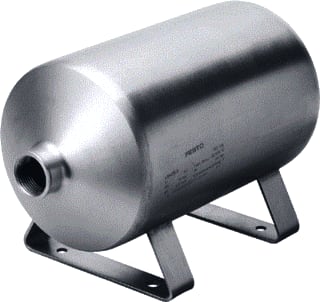

Festo - Pressured air vessel Crvzs-10 - 160237

Material:

Stainless steel

Model:

Horizontal

Mounting method:

Downward condensate drain

Nominal diameter:

G1

With safety valve:

NO

With pressure gauge:

NO

Capacity:

10 l

Max. operating pressure:

-0.95 t/m 16 bar

Weight:

6.459 g

Conforms to standard:

AD 2000 reference sheet

Authorization:

CRN

Certificate issuing department:

CRN0H15669.5C

Operating medium:

Compress air in accord. with ISO8573-1:2010 [-:-:-] Introgen

Corrosion resistance:

3: High

Suitable for foods:

See Supplementary material information

Medium temperature:

-10 t/m 100 °C

Ambient temperature:

-10 t/m 100 °C

Max. tightening torque, connecting thread:

130 Nm

Mounting:

With through hole

Materials note:

Free of copper and PTFE / Conforms to RoHS
