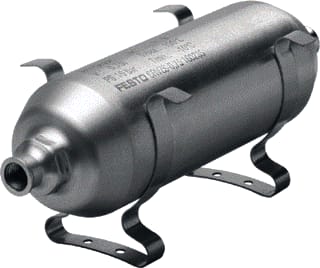

Festo - Pressured air vessel crvzs-0.4 - 160234

Material:

Stainless steel

Model:

Horizontal

Mounting method:

Any

Nominal diameter:

G 1/4 6mm Flaire

With safety valve:

NO

With pressure gauge:

NO

Capacity:

0.4 l

Max. operating pressure:

-0.95 t/m 16 bar

Weight:

543 g

Conforms to standard:

AD 2000 reference sheet

Certificate issuing department:

TSSACRN0H17477.5C

Operating medium:

Compress air in accord. with ISO8573-1:2010 [-:-:-] Introgen

Corrosion resistance:

3: High

Suitable for foods:

See Supplementary material information

Medium temperature:

-10 t/m 100 °C

Ambient temperature:

-10 t/m 100 °C

Max. tightening torque, connecting thread:

23 Nm

Mounting:

Fixing clips

Materials note:

Free of copper and PTFE / Conforms to RoHS

Material fixing clips:

High alloy steel, non-corrosive
