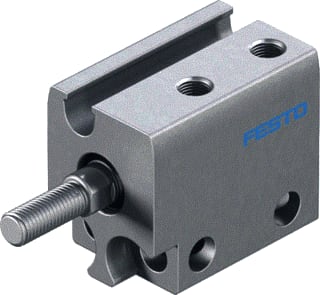

Festo - Pneumatic cylinder pneum cyl 8080598 - 8080598
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 5 mm
Inner diameter - 6 mm
Dual-action - Yes
Damping - None
Connection Piston rod end - External thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7691673
Leverancierscode
8080598
EAN
4052568447533
Commercieel bestelnummer
ADN-S-6-5-A
HGS code
188405
Douanenummer
85444290
Stroke length:
5 mm
Inner diameter:
6 mm
Dual-action:
Yes
Damping:
None
Connection Piston rod end:
External thread metric
Mounting method:
Any
Operating pressure:
1.5 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
1: Little
Ambient temperature:
-10 t/m 60 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 6mm, stroke length 5mm, dual-action yes, damping none, connection Piston rod end external thread metric, mounting method any, operating pressure 1.5 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 1: Little,
