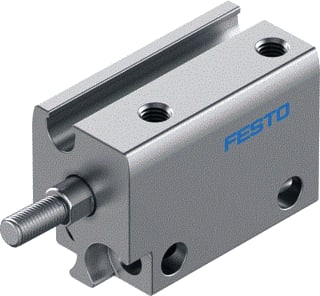

Festo - Pneumatic cylinder pneum cyl 8080591 - 8080591
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 5 mm
Inner diameter - 6 mm
Damping - None
Connection Piston rod end - External thread metric
Mounting method - Any
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7671072
Leverancierscode
8080591
EAN
4052568447465
Commercieel bestelnummer
AEN-S-6-5-A-A
HGS code
188405
Douanenummer
85444290
Stroke length:
5 mm
Inner diameter:
6 mm
Damping:
None
Connection Piston rod end:
External thread metric
Mounting method:
Any
Operating pressure:
2.5 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
1: Little
Ambient temperature:
-10 t/m 60 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 6mm, stroke length 5mm, damping none, connection Piston rod end external thread metric, mode of operation pushing action, mounting method any, operating pressure 2.5 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 1: Little,
