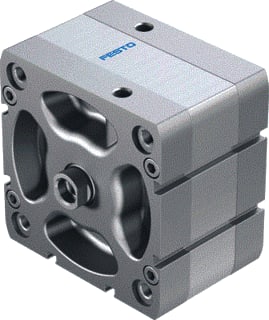

Festo - Pneumatic cylinder pneum cyl 536384 - 536384

Inner diameter:

100 mm

Stroke length:

10 mm

Dual-action:

Yes

Damping:

Double-sided

Connection Piston rod end:

Internal thread metric

Thread size Piston rod end:

12 mm

Mounting method:

Any

Operating pressure:

0.6 t/m 10 bar

Operating medium:

Compressed air ISO 8573-1:2010 [7:4:4]

Corrosion resistance:

2: Average

Ambient temperature:

-20 t/m 80 °C

Material seal:

TPE-U(PUR)

Housing material:

Aluminium

Surface protection housing:

Coated

Material piston rod:

High alloy steel
