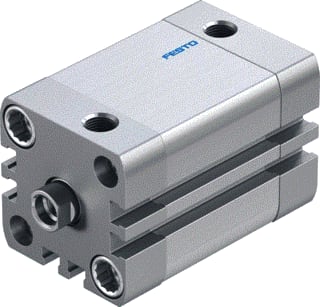

Festo - Pneumatic cylinder pneum cyl 536283 - 536283
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 32 mm
Stroke length - 30 mm
Dual-action - Yes
Damping - Double-sided
Connection Piston rod end - Internal thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6873170
Leverancierscode
536283
EAN
4052568005511
Commercieel bestelnummer
ADN-32-30-I-P-A
HGS code
188405
Douanenummer
85444290
Inner diameter:
32 mm
Stroke length:
30 mm
Dual-action:
Yes
Damping:
Double-sided
Connection Piston rod end:
Internal thread metric
Thread size Piston rod end:
8 mm
Mounting method:
Any
Operating pressure:
0.6 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
TPE-U(PUR)
Housing material:
Aluminium
Surface protection housing:
Anodised
Material piston rod:
High alloy steel
