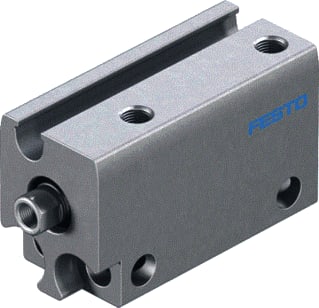

Festo - Pneumatic cylinder pneum cyl 5173733 - 5173733
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 10 mm
Inner diameter - 6 mm
Dual-action - Yes
Damping - None
Connection Piston rod end - Internal thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6876754
Leverancierscode
5173733
EAN
4052568420178
Commercieel bestelnummer
ADN-S-6-10-I-A
HGS code
188405
Douanenummer
85444290
Stroke length:
10 mm
Inner diameter:
6 mm
Dual-action:
Yes
Damping:
None
Connection Piston rod end:
Internal thread metric
Mounting method:
Any
Operating pressure:
1.5 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
1: Little
Ambient temperature:
-10 t/m 60 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 6mm, stroke length 10mm, dual-action yes, damping none, connection Piston rod end internal thread metric, mounting method any, operating pressure 1.5 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 1: Little,
