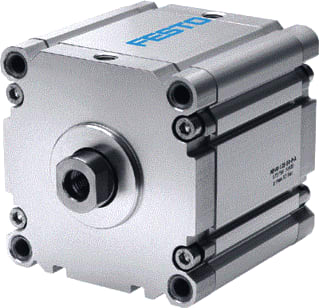

Festo - Pneumatic cylinder pneum cyl 175754 - 175754
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 30 mm
Inner diameter - 125 mm
Dual-action - Yes
Damping - Double-sided
Connection Piston rod end - Internal thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7621120
Leverancierscode
175754
EAN
4052568143275
Commercieel bestelnummer
ADVU-125-30-P-A
HGS code
188403
Douanenummer
85444290
Stroke length:
30 mm
Inner diameter:
125 mm
Dual-action:
Yes
Damping:
Double-sided
Connection Piston rod end:
Internal thread metric
Mounting method:
Any
Operating pressure:
0.5 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel
Festo pneumatic cylinder, inner diameter 125mm, stroke length 30mm, dual-action yes, damping double-sided, connection Piston rod end internal thread metric, mounting method any, operating pressure 0.5 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average,
