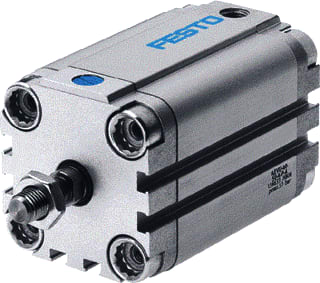

Festo - Pneumatic cylinder pneum cyl 156999 - 156999
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 32 mm
Stroke length - 20 mm
Dual-action - NO
Damping - Double-sided
Connection Piston rod end - External thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7685870
Leverancierscode
156999
EAN
4052568122355
Commercieel bestelnummer
AEVU3220APA
HGS code
188403
Douanenummer
85444290
Inner diameter:
32 mm
Stroke length:
20 mm
Dual-action:
NO
Damping:
Double-sided
Connection Piston rod end:
External thread metric
Mounting method:
Any
Operating pressure:
0.8 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 32mm, stroke length 20mm, dual-action NO, damping double-sided, connection Piston rod end external thread metric, mode of operation pushing action, mounting method any, operating pressure 0.8 - 10bar, operating medium compressed air ISO 8573-1,
