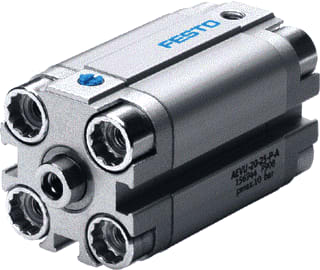

Festo - Pneumatic cylinder pneum cyl 156937 - 156937
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 16 mm
Stroke length - 15 mm
Dual-action - NO
Damping - Double-sided
Connection Piston rod end - Internal thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7641518
Leverancierscode
156937
EAN
4052568121808
Commercieel bestelnummer
AEVU-16-15-P-A
HGS code
188403
Douanenummer
85444290
Inner diameter:
16 mm
Stroke length:
15 mm
Dual-action:
NO
Damping:
Double-sided
Connection Piston rod end:
Internal thread metric
Mounting method:
Any
Operating pressure:
1.3 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 16mm, stroke length 15mm, dual-action NO, damping double-sided, connection Piston rod end internal thread metric, mode of operation pushing action, mounting method any, operating pressure 1.3 - 10bar, operating medium compressed air ISO 8573-1,
