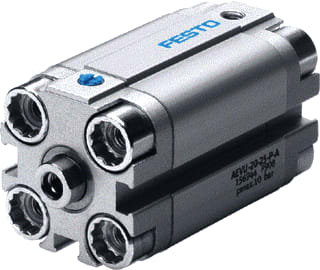

Festo - Pneumatic cylinder pneum cyl 156931 - 156931
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 10 mm
Inner diameter - 12 mm
Dual-action - NO
Damping - Double-sided
Connection Piston rod end - Internal thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7641504
Leverancierscode
156931
EAN
4052568071226
Commercieel bestelnummer
AEVU-12-10-P-A
HGS code
188403
Douanenummer
85444290
Stroke length:
10 mm
Inner diameter:
12 mm
Dual-action:
NO
Damping:
Double-sided
Connection Piston rod end:
Internal thread metric
Mounting method:
Any
Operating pressure:
1.5 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 12mm, stroke length 10mm, dual-action NO, damping double-sided, connection Piston rod end internal thread metric, mode of operation pushing action, mounting method any, operating pressure 1.5 - 10bar, operating medium compressed air ISO 8573-1,
