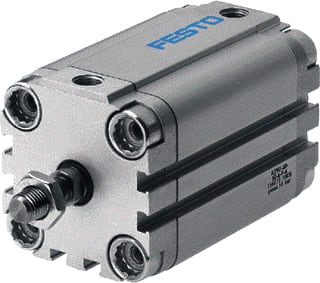

Festo - Pneumatic cylinder pneum cyl 156664 - 156664
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 100 mm
Stroke length - 15 mm
Dual-action - Yes
Damping - Double-sided
Connection Piston rod end - External thread metric
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7671226
Leverancierscode
156664
EAN
4052568119171
Commercieel bestelnummer
ADVU10015APA
HGS code
188403
Douanenummer
85444290
Inner diameter:
100 mm
Stroke length:
15 mm
Dual-action:
Yes
Damping:
Double-sided
Connection Piston rod end:
External thread metric
Mounting method:
Any
Operating pressure:
0.6 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Material piston rod:
High alloy steel
Festo pneumatic cylinder, inner diameter 100mm, stroke length 15mm, dual-action yes, damping double-sided, connection Piston rod end external thread metric, mounting method any, operating pressure 0.6 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average,
