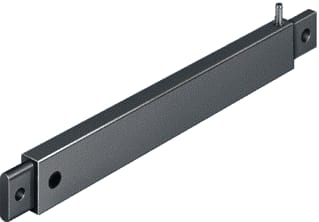

Festo - Pneumatic cylinder ezh-5/20-25-b - 164993
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 12 mm
Stroke length - 25 mm
Dual-action - NO
Damping - None
Mounting method - Any
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7665423
Leverancierscode
164993
EAN
4052568073657
Commercieel bestelnummer
EZH-5/20-25-B
HGS code
188403
Douanenummer
85444290
Inner diameter:
12 mm
Stroke length:
25 mm
Dual-action:
NO
Damping:
None
Mounting method:
Any
Operating pressure:
2.5 t/m 6 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
0 t/m 60 °C
Material seal:
TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Untreated
Material piston rod:
Steel
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 12mm, stroke length 25mm, dual-action NO, damping none, mounting method any, operating pressure 2.5 - 6bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature 0 - 60°C, material seal TPE-U(PU),
