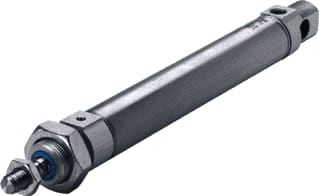

Festo - Pneumatic cylinder Esnu-12-50-P-A - 19262
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 50 mm
Inner diameter - 12 mm
Dual-action - NO
Damping - Double-sided
Mounting method - Any
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6914869
Leverancierscode
19262
EAN
4052568067182
Commercieel bestelnummer
ESNU-12-50-P-A
HGS code
188412
Douanenummer
85444290
Stroke length:
50 mm
Inner diameter:
12 mm
Dual-action:
NO
Damping:
Double-sided
Mounting method:
Any
Operating pressure:
1.5 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
NBR TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Anodised
Material piston rod:
High alloy steel, non-corrosive
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 12mm, stroke length 50mm, dual-action NO, damping double-sided, mounting method any, operating pressure 1.5 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C, free of copper and PTFE NO,
