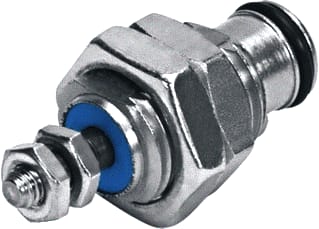

Festo - Pneumatic cylinder egz-16-5 - 15039
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 16 mm
Stroke length - 5 mm
Dual-action - NO
Damping - None
Operating pressure - 2 t/m 8 bar
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7699520
Leverancierscode
15039
EAN
4052568066642
Commercieel bestelnummer
EGZ-16-5
HGS code
188403
Douanenummer
85444290
Inner diameter:
16 mm
Stroke length:
5 mm
Dual-action:
NO
Damping:
None
Operating pressure:
2 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:-:-]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
TPE-U(PU)
Housing material:
Brass
Surface protection housing:
Nickel-plated
Material piston rod:
High alloy steel
Festo pneumatic cylinder, inner diameter 16mm, stroke length 5mm, dual-action NO, damping none, mode of operation pushing action, operating pressure 2 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C, material seal TPE-U(PU),
