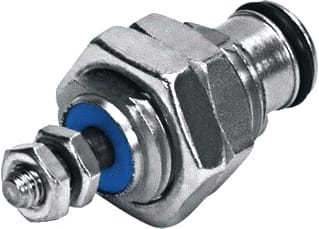

Festo - Pneumatic cylinder egz-10-15 - 15038
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 10 mm
Stroke length - 15 mm
Dual-action - NO
Damping - None
Operating pressure - 1.5 t/m 8 bar
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7695866
Leverancierscode
15038
EAN
4052568066635
Commercieel bestelnummer
EGZ-10-15
HGS code
188403
Douanenummer
85444290
Inner diameter:
10 mm
Stroke length:
15 mm
Dual-action:
NO
Damping:
None
Operating pressure:
1.5 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:-:-]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
TPE-U(PU)
Housing material:
Brass
Surface protection housing:
Nickel-plated
Material piston rod:
High alloy steel
Festo pneumatic cylinder, inner diameter 10mm, stroke length 15mm, dual-action NO, damping none, mode of operation pushing action, operating pressure 1.5 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C, material seal TPE-U(PU),
