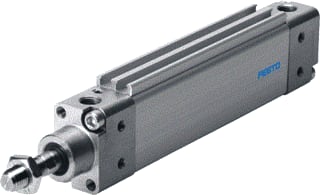

Festo - Pneumatic cylinder dzh-20-200-ppv-a - 151141
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 200 mm
Inner diameter - 20 mm
Dual-action - Yes
Damping - Double-sided
Damping length - 17 mm
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7674040
Leverancierscode
151141
EAN
4052568010522
Commercieel bestelnummer
DZH20200PPVA
HGS code
188403
Douanenummer
85444290
Stroke length:
200 mm
Inner diameter:
20 mm
Dual-action:
Yes
Damping:
Double-sided
Damping length:
17 mm
Mounting method:
Any
Operating pressure:
1 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Untreated
Material piston rod:
High alloy steel
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 20mm, stroke length 200mm, dual-action yes, damping double-sided, damping length 17mm, mounting method any, operating pressure 1 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C,
