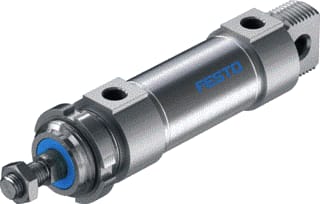

Festo - Pneumatic cylinder dsnu-40-40-ppv-a - 196031
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 40 mm
Inner diameter - 40 mm
Dual-action - Yes
Damping - Double-sided
Damping length - 18 mm
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6931431
Leverancierscode
196031
EAN
4052568158798
Commercieel bestelnummer
DSNU4040PPVA
HGS code
188407
Douanenummer
85444290
Stroke length:
40 mm
Inner diameter:
40 mm
Dual-action:
Yes
Damping:
Double-sided
Damping length:
18 mm
Mounting method:
Any
Operating pressure:
1 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
NBR TPE-U(PU)
Housing material:
Aluminium
Material piston rod:
High alloy steel
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 40mm, stroke length 40mm, dual-action yes, damping double-sided, damping length 18mm, mounting method any, operating pressure 1 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C,
