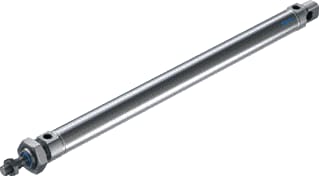

Festo - Pneumatic cylinder dsnu-25-320-pps-a - 559292
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 320 mm
Inner diameter - 25 mm
Dual-action - Yes
Damping - Double-sided
Damping length - 17 mm
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6874213
Leverancierscode
559292
EAN
4052568205683
Commercieel bestelnummer
DSNU25320PPSA
HGS code
188407
Douanenummer
85444290
Stroke length:
320 mm
Inner diameter:
25 mm
Dual-action:
Yes
Damping:
Double-sided
Damping length:
17 mm
Mounting method:
Any
Operating pressure:
1 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
NBR TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Anodised
Material piston rod:
High alloy steel, non-corrosive
Suitable for foods (F&B):
NO
