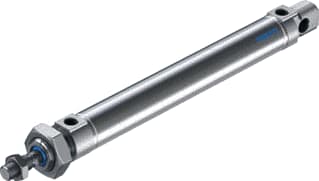

Festo - Pneumatic cylinder Dsnu-25-150-P-A - 1908311
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 150 mm
Inner diameter - 25 mm
Dual-action - Yes
Damping - Double-sided
Mounting method - Any
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6876096
Leverancierscode
1908311
EAN
4052568108915
Commercieel bestelnummer
DSNU-25-150-P-A
HGS code
188407
Douanenummer
85444290
Stroke length:
150 mm
Inner diameter:
25 mm
Dual-action:
Yes
Damping:
Double-sided
Mounting method:
Any
Operating pressure:
1 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
NBR TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Anodised
Material piston rod:
High alloy steel, non-corrosive
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 25mm, stroke length 150mm, dual-action yes, damping double-sided, mounting method any, operating pressure 1 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C, free of copper and PTFE NO,
