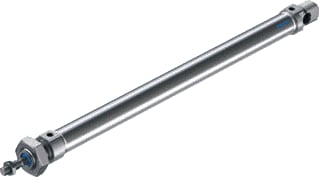

Festo - Pneumatic cylinder dsnu-16-200-ppv-a - 19235
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 200 mm
Inner diameter - 16 mm
Dual-action - Yes
Damping - Double-sided
Damping length - 12 mm
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6869761
Leverancierscode
19235
EAN
4052568067106
Commercieel bestelnummer
DSNU16200PPVA
HGS code
188407
Douanenummer
85444290
Stroke length:
200 mm
Inner diameter:
16 mm
Dual-action:
Yes
Damping:
Double-sided
Damping length:
12 mm
Mounting method:
Any
Operating pressure:
1 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
NBR TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Anodised
Material piston rod:
High alloy steel, non-corrosive
Suitable for foods (F&B):
NO
