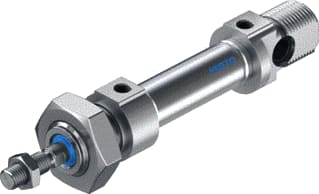

Festo - Pneumatic cylinder dsnu-12-10-p-a - 19189

Inner diameter:

12 mm

Stroke length:

10 mm

Dual-action:

Yes

Damping:

Double-sided

Mounting method:

Any

Operating pressure:

1.5 t/m 10 bar

Operating medium:

Compressed air ISO 8573-1:2010 [7:4:4]

Corrosion resistance:

2: Average

Ambient temperature:

-20 t/m 80 °C

Material seal:

NBR TPE-U(PU)

Housing material:

Aluminium

Surface protection housing:

Anodised

Material piston rod:

High alloy steel, non-corrosive

Suitable for foods (F&B):

NO
