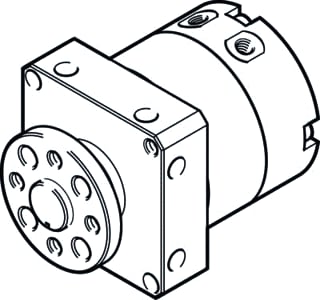

Festo - Pneumatic cylinder dsm-t-8-90-p-fw - 1564334
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 8 mm
Dual-action - Yes
Mounting method - With internal (female) thread
Operating pressure - 4 t/m 8 bar
Operating medium - Compressed air ISO 8573-1:2010 [7:4:4]
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7625677
Leverancierscode
1564334
EAN
4052568240264
Commercieel bestelnummer
DSM-T-8-90-P-FW
HGS code
188403
Douanenummer
85444290
Inner diameter:
8 mm
Dual-action:
Yes
Mounting method:
With internal (female) thread
Operating pressure:
4 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Ambient temperature:
0 t/m 60 °C
Material seal:
TPE-U(PU)
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 8mm, dual-action yes, mounting method with internal (female) th, operating pressure 4 - 8bar, operating medium compressed air ISO 8573-1, ambient temperature 0 - 60°C, basic weight for 0 mm stroke 117g, material seal TPE-U(PU),
