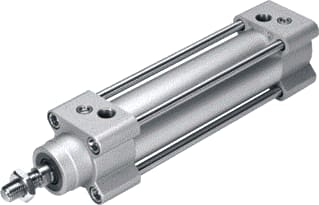

Festo - Pneumatic cylinder dsbg-40-125-ppva-n3 - 1646552

Stroke length:

125 mm

Inner diameter:

40 mm

Dual-action:

Yes

Damping:

Double-sided

Damping length:

19 mm

Mounting method:

Any

Operating pressure:

0.6 t/m 12 bar

Operating medium:

Compressed air ISO 8573-1:2010 [7:4:4]

Corrosion resistance:

2: Average

Ambient temperature:

-20 t/m 80 °C

Housing material:

Aluminium

Surface protection housing:

Coated

Material piston rod:

High alloy steel

Suitable for foods (F&B):

NO
