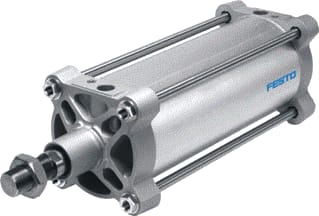

Festo - Pneumatic cylinder dsbg-200-200-ppva-n3 - 2390146
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 200 mm
Stroke length - 200 mm
Dual-action - Yes
Damping - Double-sided
Damping length - 48 mm
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7606098
Leverancierscode
2390146
EAN
4052568253899
Commercieel bestelnummer
DSBG200200PPVAN
HGS code
188404
Douanenummer
85444290
Inner diameter:
200 mm
Stroke length:
200 mm
Dual-action:
Yes
Damping:
Double-sided
Damping length:
48 mm
Mounting method:
Any
Operating pressure:
0.6 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Surface protection housing:
Coated
Material piston rod:
High alloy steel
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 200mm, stroke length 200mm, dual-action yes, damping double-sided, damping length 48mm, mounting method any, operating pressure 0.6 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C,
