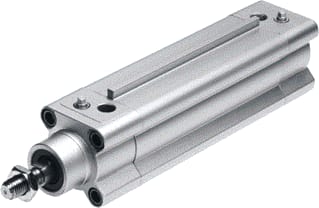

Festo - Pneumatic cylinder dsbf-c-50-200-ppva-n3-r - 1775265

Stroke length:

200 mm

Inner diameter:

50 mm

Dual-action:

Yes

Damping:

Double-sided

Damping length:

22 mm

Mounting method:

Any

Operating pressure:

0.4 t/m 12 bar

Operating medium:

Compressed air ISO 8573-1:2010 [7:4:4]

Corrosion resistance:

3: High

Ambient temperature:

-20 t/m 80 °C

Housing material:

Aluminium

Surface protection housing:

Coated

Material piston rod:

High alloy steel, non-corrosive

Suitable for foods (F&B):

NO
