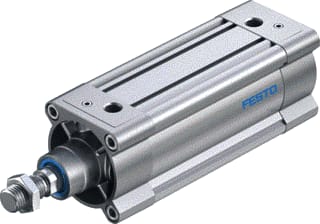

Festo - Pneumatic cylinder dsbc-80-125-ppva-n3 - 1383338
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 80 mm
Dual-action - Yes
Damping - Double-sided
Damping length - 31 mm
Mounting method - Any
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6176978
Leverancierscode
1383338
EAN
4052568232016
Commercieel bestelnummer
DSBC80125PPVAN3
HGS code
188406
Douanenummer
85444290
Inner diameter:
80 mm
Dual-action:
Yes
Damping:
Double-sided
Damping length:
31 mm
Mounting method:
Any
Operating pressure:
0.4 t/m 12 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Surface protection housing:
Coated
Material piston rod:
High alloy steel
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 80mm, dual-action yes, damping double-sided, damping length 31mm, mounting method any, operating pressure 0.4 - 12bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C, theoretical force at 6 bar,
