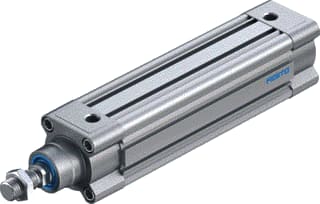

Festo - Pneumatic cylinder dsbc-50-160-d3-ppsa-n3 - 3659502
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 160 mm
Inner diameter - 50 mm
Dual-action - Yes
Damping - Double-sided
Damping length - 22 mm
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7595752
Leverancierscode
3659502
EAN
4052568273057
Commercieel bestelnummer
DSBC50160D3PPSA
HGS code
188405
Douanenummer
85444290
Stroke length:
160 mm
Inner diameter:
50 mm
Dual-action:
Yes
Damping:
Double-sided
Damping length:
22 mm
Mounting method:
Any
Operating pressure:
0.4 t/m 12 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Housing material:
Aluminium
Surface protection housing:
Coated
Material piston rod:
High alloy steel
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 50mm, stroke length 160mm, dual-action yes, damping double-sided, damping length 22mm, mounting method any, operating pressure 0.4 - 12bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C,
