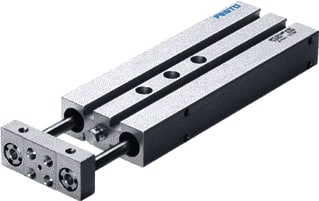

Festo - Pneumatic cylinder dpz1040pakf - 162003
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 40 mm
Dual-action - Yes
Operating pressure - 1 t/m 8 bar
Operating medium - Compressed air ISO 8573-1:2010 [7:-:-]
Ambient temperature - -20 t/m 80 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7686507
Leverancierscode
162003
EAN
4052568129576
Commercieel bestelnummer
DPZ1040PAKF
HGS code
188403
Douanenummer
85444290
Stroke length:
40 mm
Dual-action:
Yes
Operating pressure:
1 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:-:-]
Ambient temperature:
-20 t/m 80 °C
Surface protection housing:
Untreated
Festo pneumatic cylinder, stroke length 40mm, dual-action yes, operating pressure 1 - 8bar, operating medium compressed air ISO 8573-1, ambient temperature -20 - +80°C, theoretical force at 6 bar, return 60N, theoretical force at 6 bar, advance 94N, surface protection housing untreated
