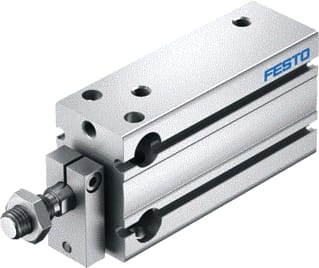

Festo - Pneumatic cylinder dpdm-q-20-5-pa - 4840813
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 5 mm
Inner diameter - 20 mm
Dual-action - Yes
Damping - Double-sided
Operating pressure - 1.5 t/m 8 bar
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7649225
Leverancierscode
4840813
EAN
4052568293444
Commercieel bestelnummer
DPDM-Q-20-5-PA
HGS code
188403
Douanenummer
85444290
Stroke length:
5 mm
Inner diameter:
20 mm
Dual-action:
Yes
Damping:
Double-sided
Operating pressure:
1.5 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-10 t/m 80 °C
Material seal:
TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Anodised
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 20mm, stroke length 5mm, dual-action yes, damping double-sided, operating pressure 1.5 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -10 - +80°C, material seal TPE-U(PU), housing material aluminium,
