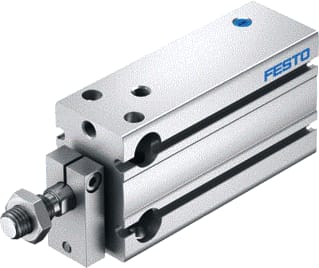

Festo - Pneumatic cylinder dpdm-q-16-15-p-pa - 4834382
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 16 mm
Stroke length - 15 mm
Dual-action - NO
Damping - Double-sided
Operating pressure - 2 t/m 8 bar
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7673053
Leverancierscode
4834382
EAN
4052568293277
Commercieel bestelnummer
DPDMQ1615PPA
HGS code
188403
Douanenummer
85444290
Inner diameter:
16 mm
Stroke length:
15 mm
Dual-action:
NO
Damping:
Double-sided
Operating pressure:
2 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-10 t/m 80 °C
Material seal:
TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Anodised
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 16mm, stroke length 15mm, dual-action NO, damping double-sided, mode of operation pulling action, operating pressure 2 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -10 - +80°C,
