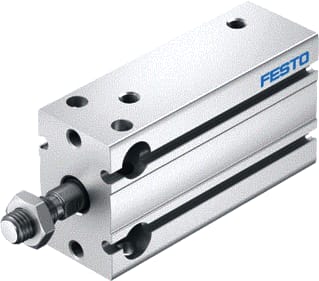

Festo - Pneumatic cylinder dpdm-6-20-pa - 4830903
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 20 mm
Inner diameter - 6 mm
Dual-action - Yes
Damping - Double-sided
Operating pressure - 1.8 t/m 8 bar
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7684596
Leverancierscode
4830903
EAN
4052568292553
Commercieel bestelnummer
DPDM-6-20-PA
HGS code
188403
Douanenummer
85444290
Stroke length:
20 mm
Inner diameter:
6 mm
Dual-action:
Yes
Damping:
Double-sided
Operating pressure:
1.8 t/m 8 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
1: Little
Ambient temperature:
-10 t/m 80 °C
Material seal:
NBR TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Anodised
Material piston rod:
High alloy steel, non-corrosive
Festo pneumatic cylinder, inner diameter 6mm, stroke length 20mm, dual-action yes, damping double-sided, operating pressure 1.8 - 8bar, operating medium compressed air ISO 8573-1, corrosion resistance 1: Little, ambient temperature -10 - +80°C, material seal NBR TPE-U(PU),
