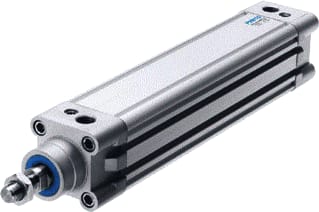

Festo - Pneumatic cylinder dnc-50-80-ppv-a - 163372
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Inner diameter - 50 mm
Stroke length - 80 mm
Dual-action - Yes
Damping - Double-sided
Damping length - 22 mm
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
7620623
Leverancierscode
163372
EAN
4052568134020
Commercieel bestelnummer
DNC-50-80-PPV-A
HGS code
188403
Douanenummer
85444290
Inner diameter:
50 mm
Stroke length:
80 mm
Dual-action:
Yes
Damping:
Double-sided
Damping length:
22 mm
Mounting method:
Any
Operating pressure:
0.6 t/m 12 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
2: Average
Ambient temperature:
-20 t/m 80 °C
Material seal:
TPE-U(PU)
Housing material:
Aluminium
Surface protection housing:
Coated
Material piston rod:
High alloy steel
Suitable for foods (F&B):
NO
Festo pneumatic cylinder, inner diameter 50mm, stroke length 80mm, dual-action yes, damping double-sided, damping length 22mm, mounting method any, operating pressure 0.6 - 12bar, operating medium compressed air ISO 8573-1, corrosion resistance 2: Average, ambient temperature -20 - +80°C,
