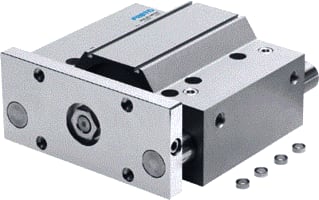

Festo - Pneumatic cylinder dfm8050pakf - 170961
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 50 mm
Dual-action - Yes
Operating pressure - 0.5 t/m 10 bar
Operating medium - Compressed air ISO 8573-1:2010 [7:4:4]
Ambient temperature - -5 t/m 60 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6922597
Leverancierscode
170961
EAN
4052568140427
Commercieel bestelnummer
DFM8050PAKF
HGS code
188405
Douanenummer
85444290
Stroke length:
50 mm
Dual-action:
Yes
Operating pressure:
0.5 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Ambient temperature:
-5 t/m 60 °C
Surface protection housing:
Untreated
Festo pneumatic cylinder, stroke length 50mm, dual-action yes, operating pressure 0.5 - 10bar, operating medium compressed air ISO 8573-1, ambient temperature -5 - +60°C, max. torque for protection against 21.3Nm, theoretical force at 6 bar, return 2.827N, theoretical force at 6 bar, advance 3.016N,
