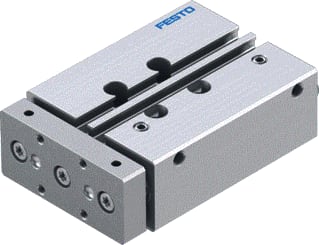

Festo - Pneumatic cylinder dfm1240pagf - 170828
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 40 mm
Dual-action - Yes
Operating pressure - 2 t/m 10 bar
Operating medium - Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance - 1: Little
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6871119
Leverancierscode
170828
EAN
4052568139582
Commercieel bestelnummer
DFM1240PAGF
HGS code
188405
Douanenummer
85444290
Stroke length:
40 mm
Dual-action:
Yes
Operating pressure:
2 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Corrosion resistance:
1: Little
Ambient temperature:
-20 t/m 80 °C
Surface protection housing:
Untreated
Festo pneumatic cylinder, stroke length 40mm, dual-action yes, operating pressure 2 - 10bar, operating medium compressed air ISO 8573-1, corrosion resistance 1: Little, ambient temperature -20 - +80°C, max. torque for protection against 0.65Nm, theoretical force at 6 bar, return 51N,
