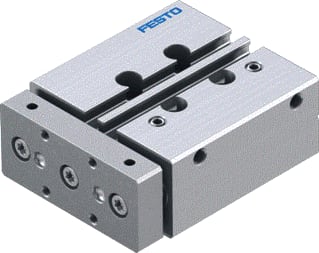

Festo - Pneumatic cylinder dfm1225pakf - 170901
Bekijk voorraad en prijs na inlog
Belangrijke kenmerken
Stroke length - 25 mm
Dual-action - Yes
Operating pressure - 2 t/m 10 bar
Operating medium - Compressed air ISO 8573-1:2010 [7:4:4]
Ambient temperature - -5 t/m 60 °C
Verpakking
1 per stuk(s)
## Geen retour mogelijk ##
Artikelnummer TU
6871343
Leverancierscode
170901
EAN
4052568139957
Commercieel bestelnummer
DFM1225PAKF
HGS code
188405
Douanenummer
85444290
Stroke length:
25 mm
Dual-action:
Yes
Operating pressure:
2 t/m 10 bar
Operating medium:
Compressed air ISO 8573-1:2010 [7:4:4]
Ambient temperature:
-5 t/m 60 °C
Surface protection housing:
Untreated
Festo pneumatic cylinder, stroke length 25mm, dual-action yes, operating pressure 2 - 10bar, operating medium compressed air ISO 8573-1, ambient temperature -5 - +60°C, max. torque for protection against 0.66Nm, theoretical force at 6 bar, return 51N, theoretical force at 6 bar, advance 68N,
